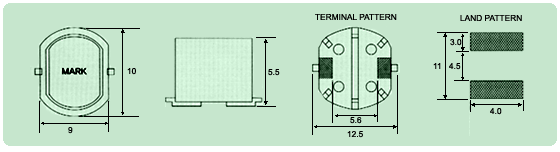

DSC-3010P (3.0*2.5*1.0) DSC-3012P (3.0*2.5*1.2) DSC-1714S (3.0*2.5*1.8) DSC-3510P (3.5*3.5*1.1) DSC-3411U (4.0*4.0*1.5) DSC-4012P (4.0*3.5*1.2) DSC-3511S (5.0*4.5*1.4) DSC-3511U (3.9*3.8*1.5) DSC-3521U (3.5*3.0*2.1) DSC-3818S (6.4*4.4*1.9) DSC-4020 (6.4*4.0*2.5) DSC-4017R (6.6*6.2*2.0) DSC-4025R (6.6*6.2*2.8) DSC-4045R (6.6*6.2*4.8) DSC-4532U (4.5*4.0*3.2) DSC-4510U (7.0*5.5*1.0) DSC-5327R (7.3*7.3*3.2) DSC-5337R (7.3*7.3*4.2) DSC-5845U (5.8*5.2*4.5) DSC-7850U (7.8*7.0*5.0) DSC-8020U (13.1*9.3*3.0) DSC-8040U (13.1*9.3*5.0) DSC-8030R(10.4*10.4*3.5) DSC-8050R(12.5*10.0*5.5) DSC-1040R (12*12*4.5) DSC-1050U (10.3*9.8*5.3) DSC-1050R (12*12*6.0) DSC-1070R (12*12*8.0) DSC-1070U (10.3*9.8*7.3) DSC-1270U(22.0*15.5*7.0)	▷ FEATURES Magnetically Shielded High Efficiency and cost-effective 10% to 60% lower DCR Flat top for reliable surface mounting Custom version available ▷ INDUCTANCE vs CURRENT ▷ APPLICATIONS Backlighting device / DC-DC converter / Power applications ▷ ELECTRICAL CHARACTERISTICS Part Number Fig no Dimension(㎜) L DCR CURRENT Magnetic style A B C D (uH)±20% (Ω)MAX (A)MAX DSC-8050R-100M 5 10.0 9 5.5 5.6 10 0.05 2.40 Shielede (Tested at 1㎑, 1, 0v) 150M 15 0.07 2.10 180M 18 0.08 1.90 220M 22 0.09 1.70 330M 33 0.11 1.40 470M 47 0.15 1.20 680M 68 0.22 0.97 820M 82 0.30 0.88 101M 100 0.34 0.80 151M 150 0.51 0.65 181M 180 0.57 0.60 221M 220 0.77 0.54 331M 330 1.02 0.44 1. Inductance tested at 1KHz, 0.1v 2. Operating temperature range -40℃ to +85℃ 3. Electrical specifications at 25℃   ▷ DIMENSIONS (unit:mm) / Tolerances ±0.1
